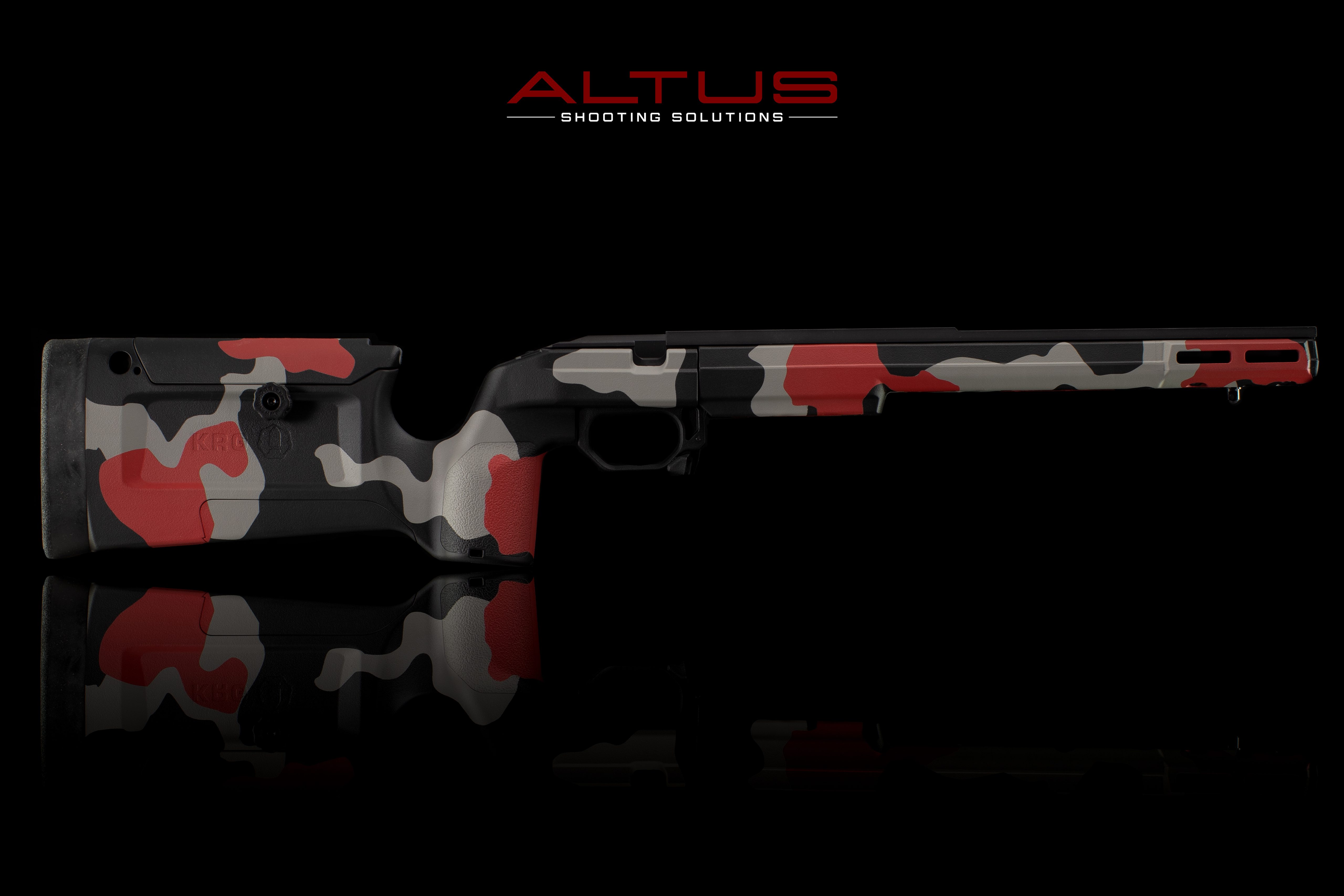

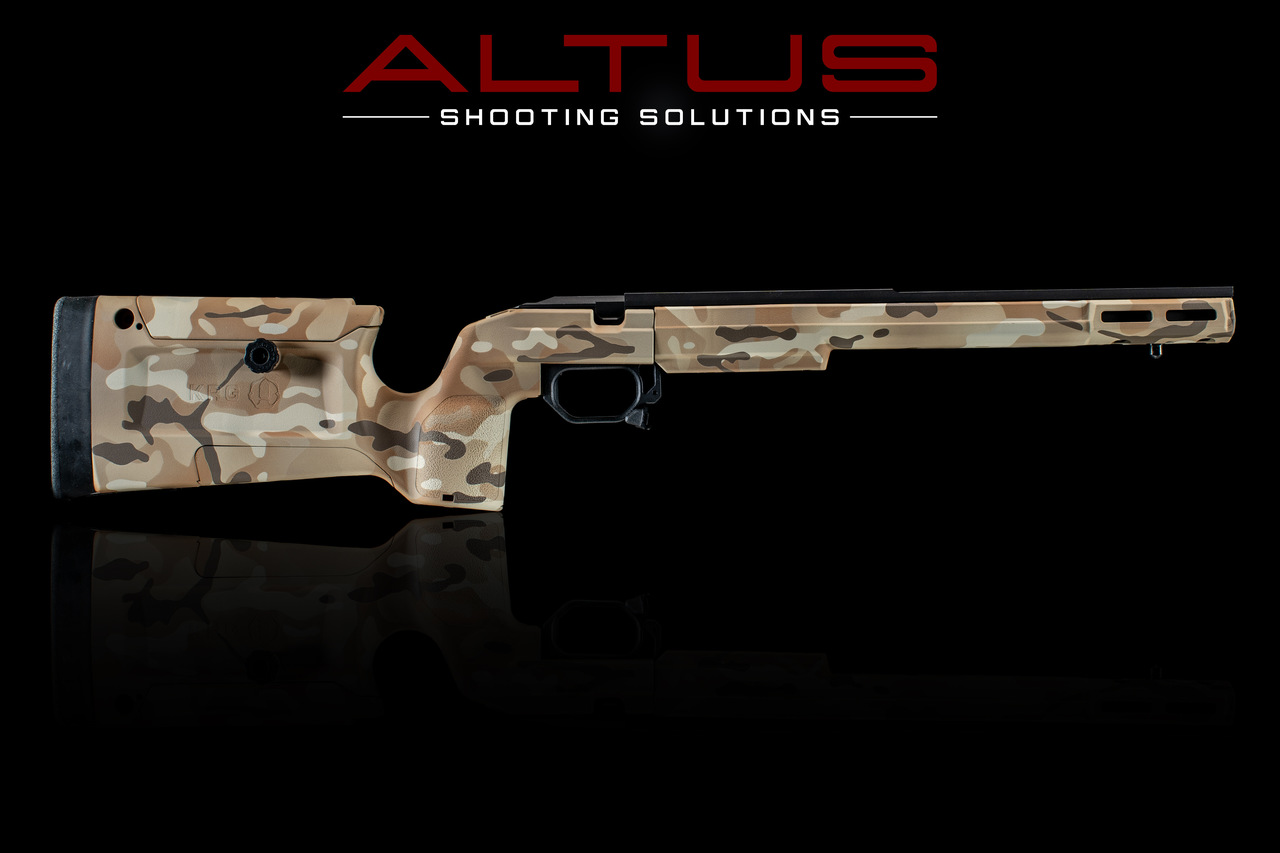

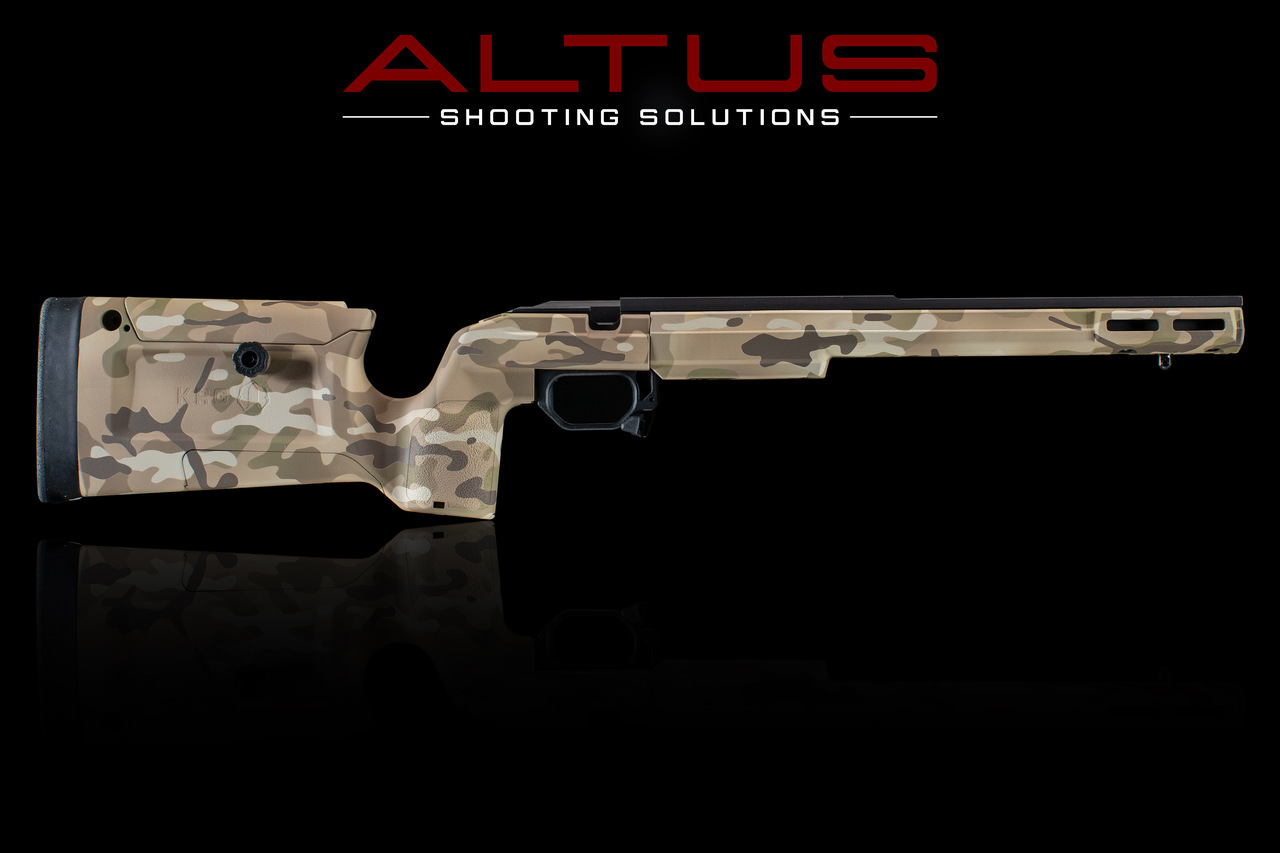

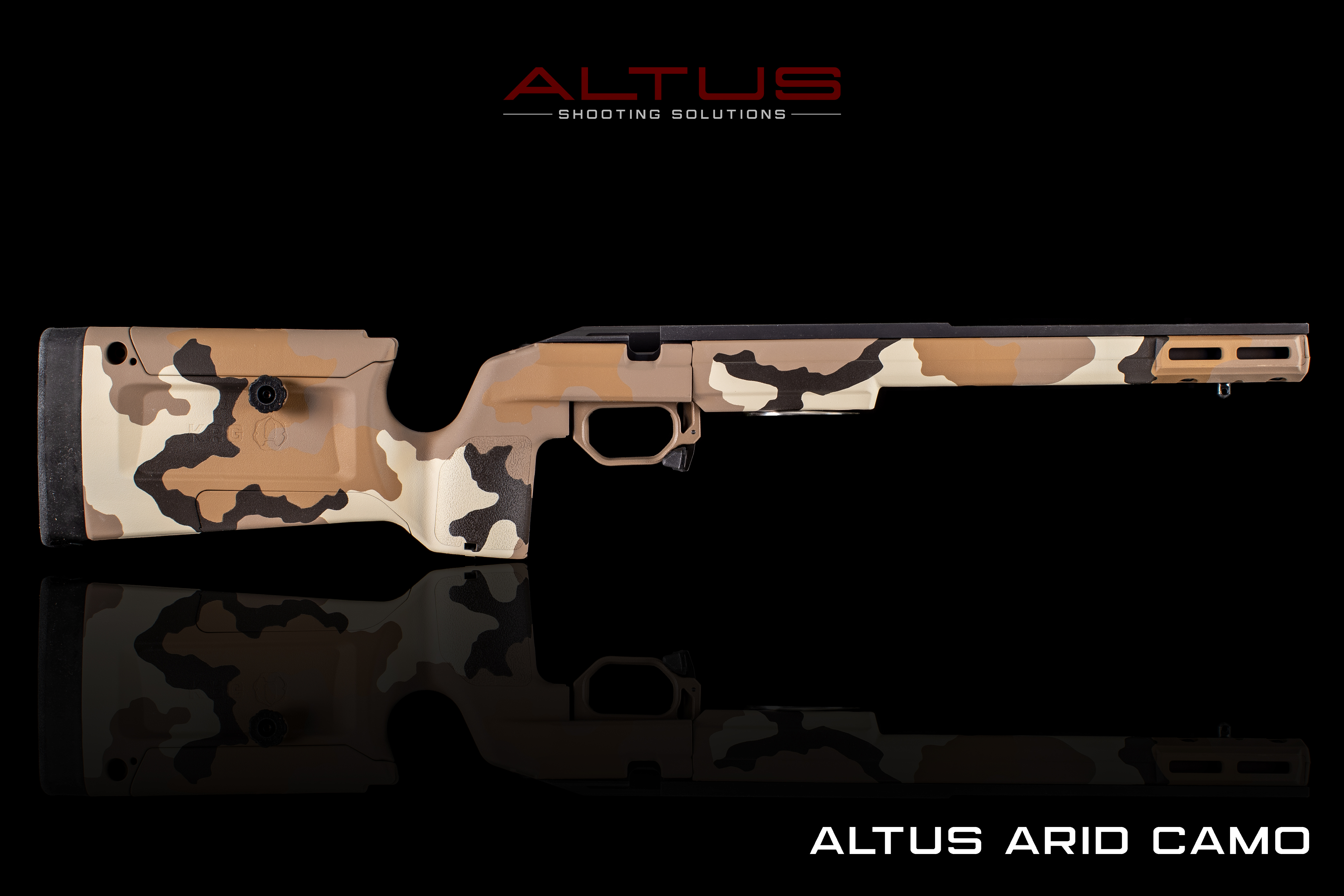

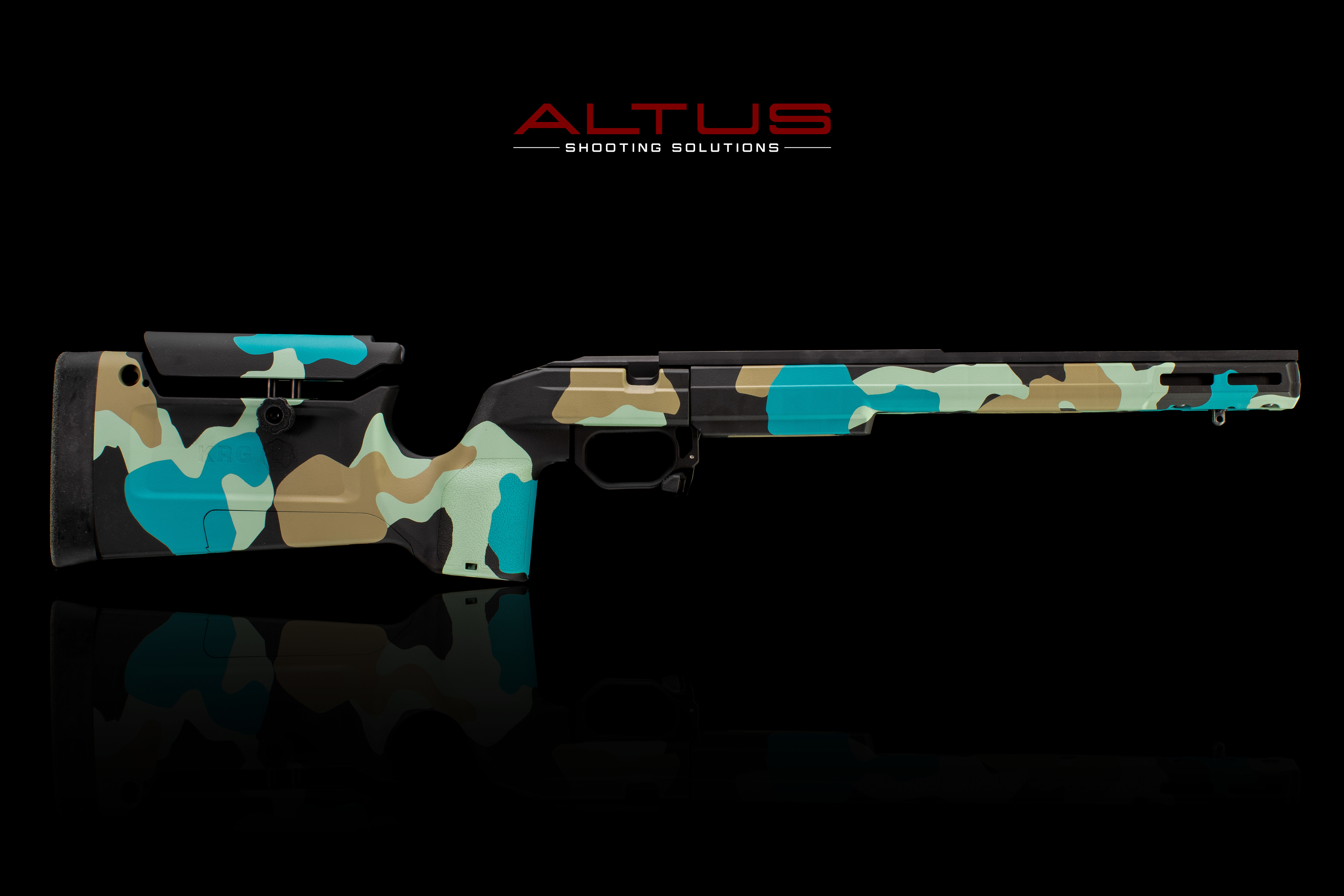

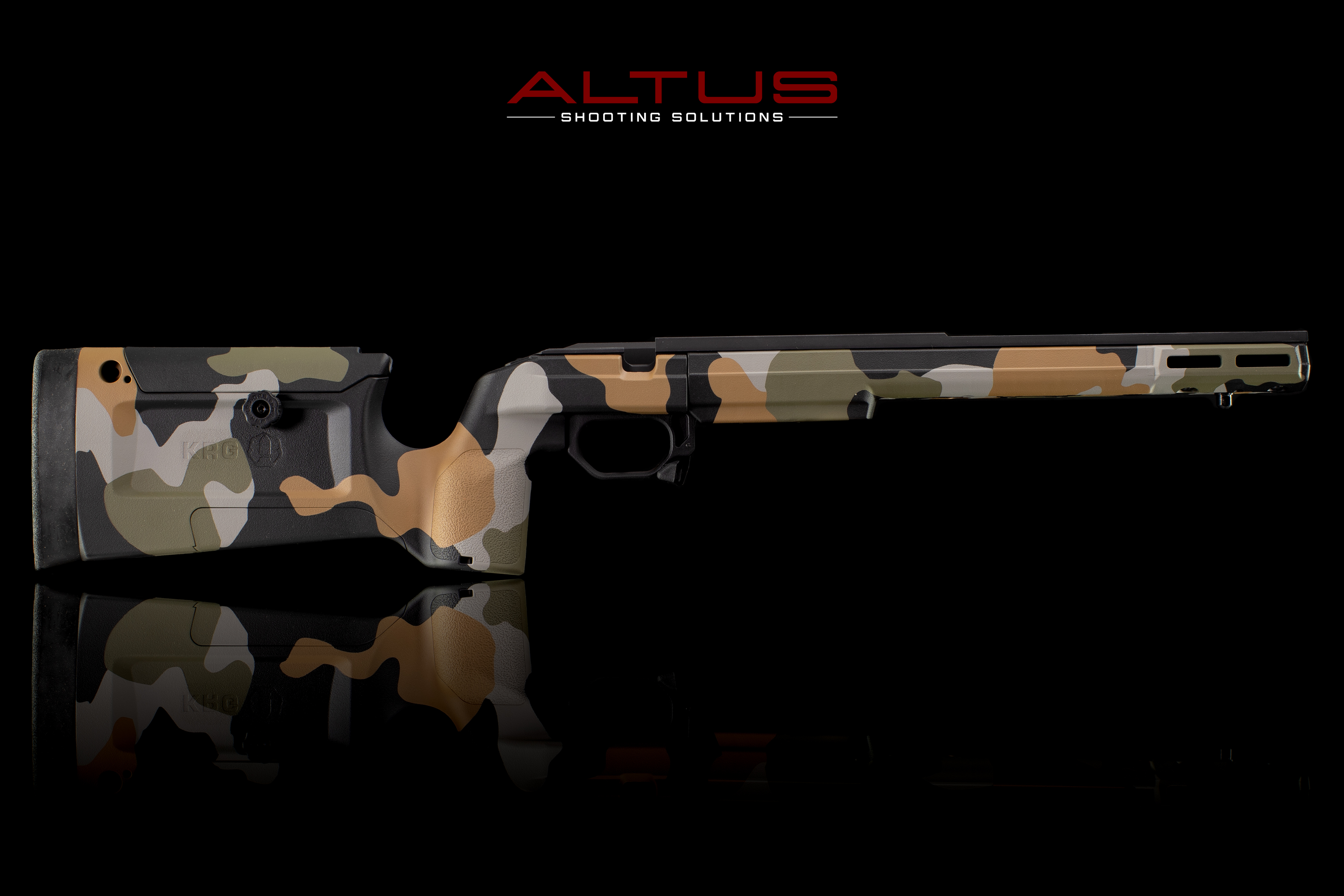

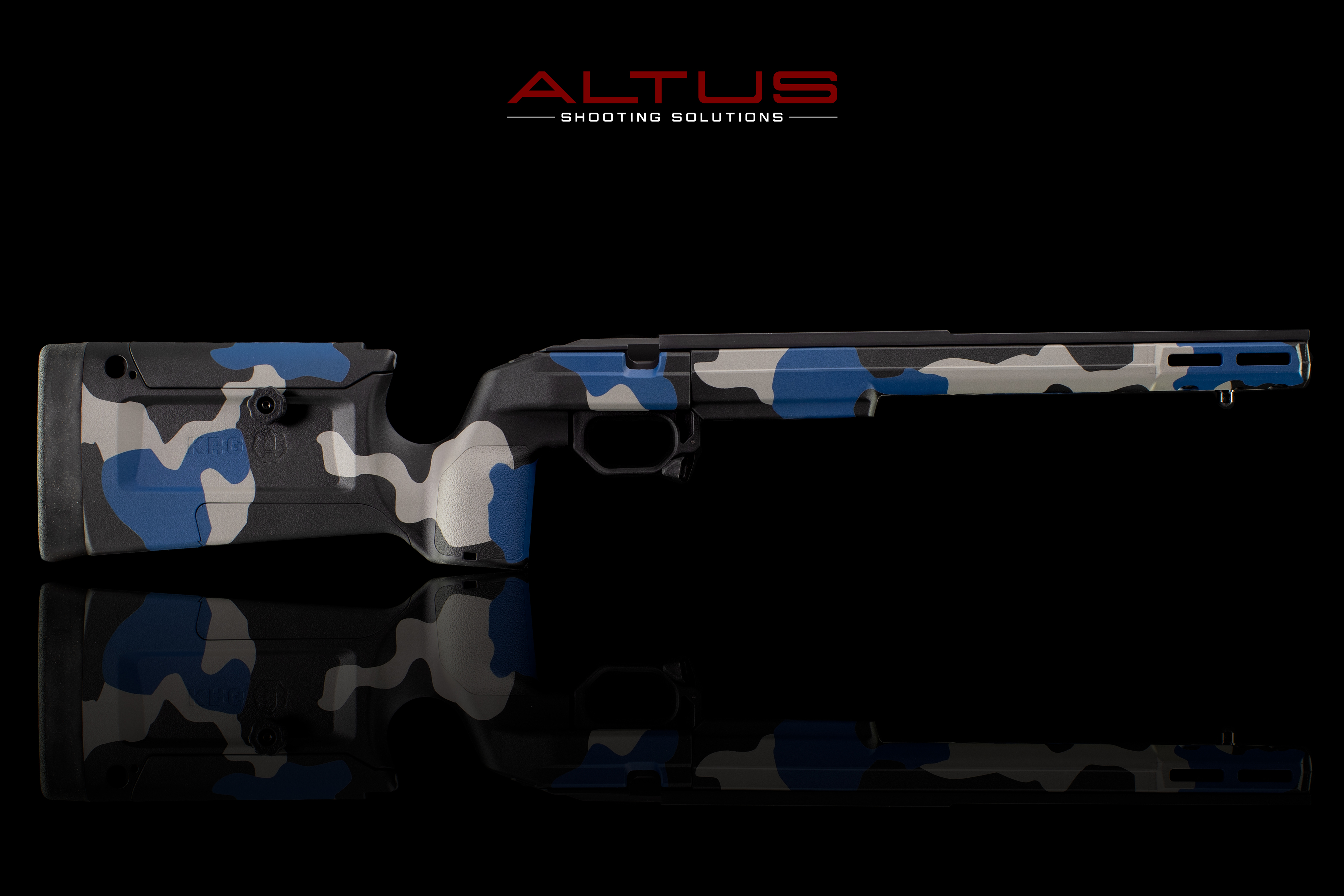

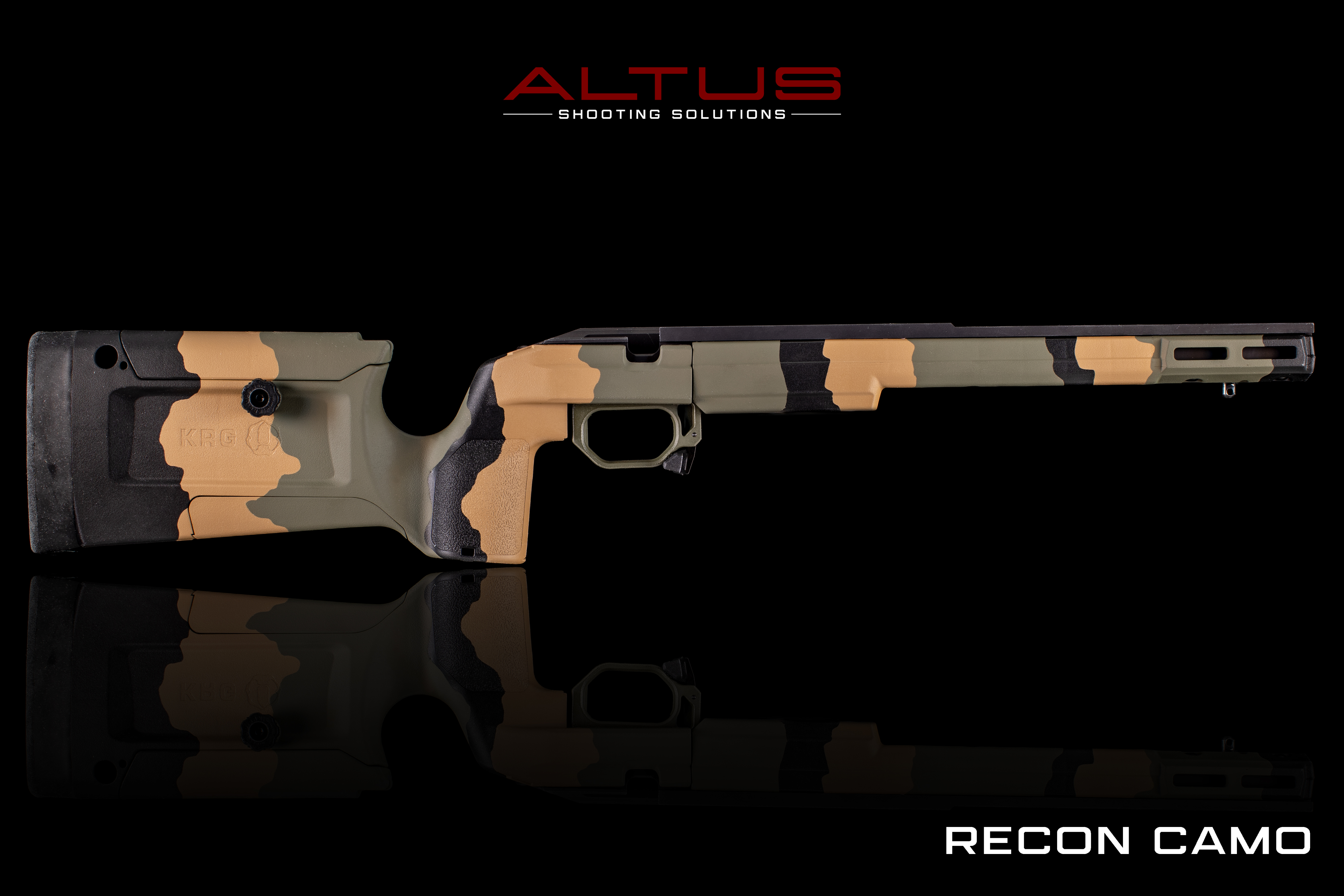

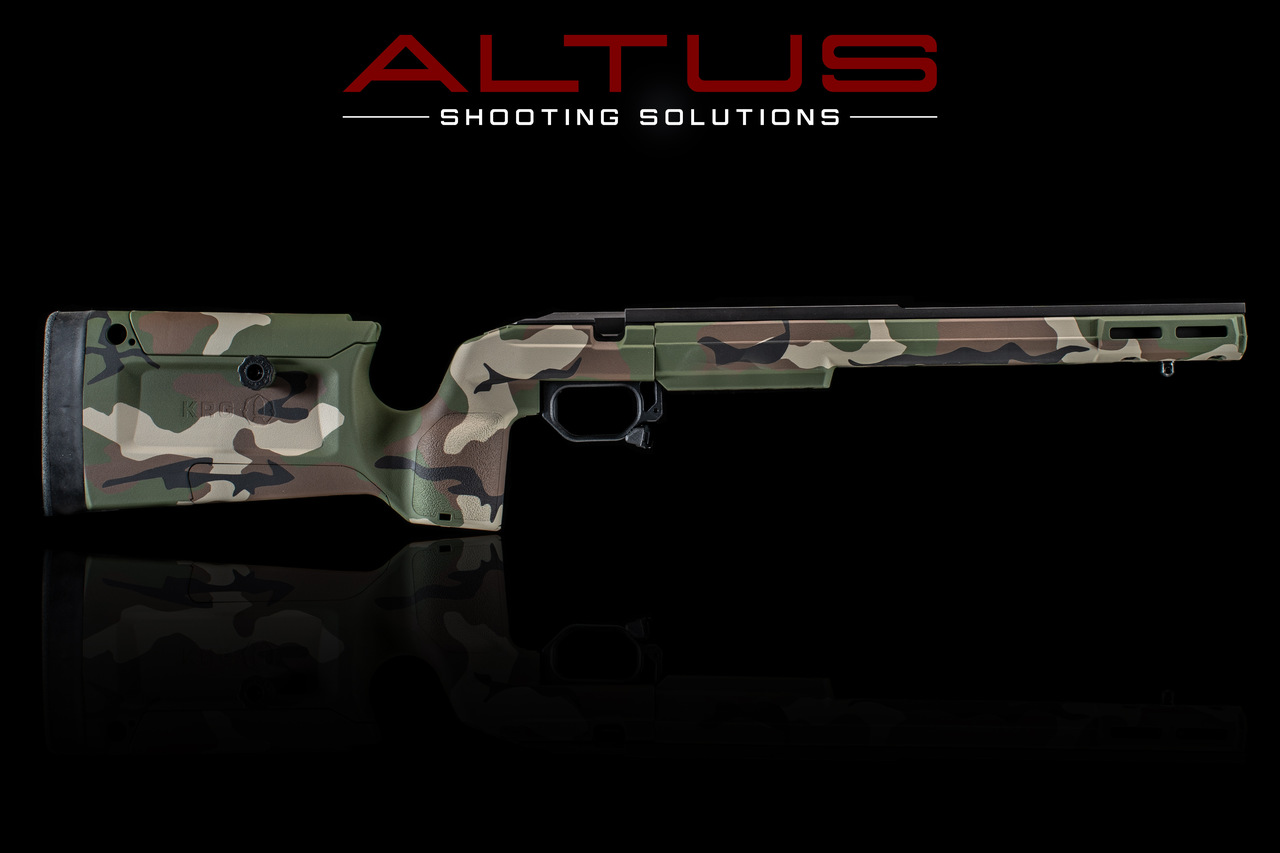

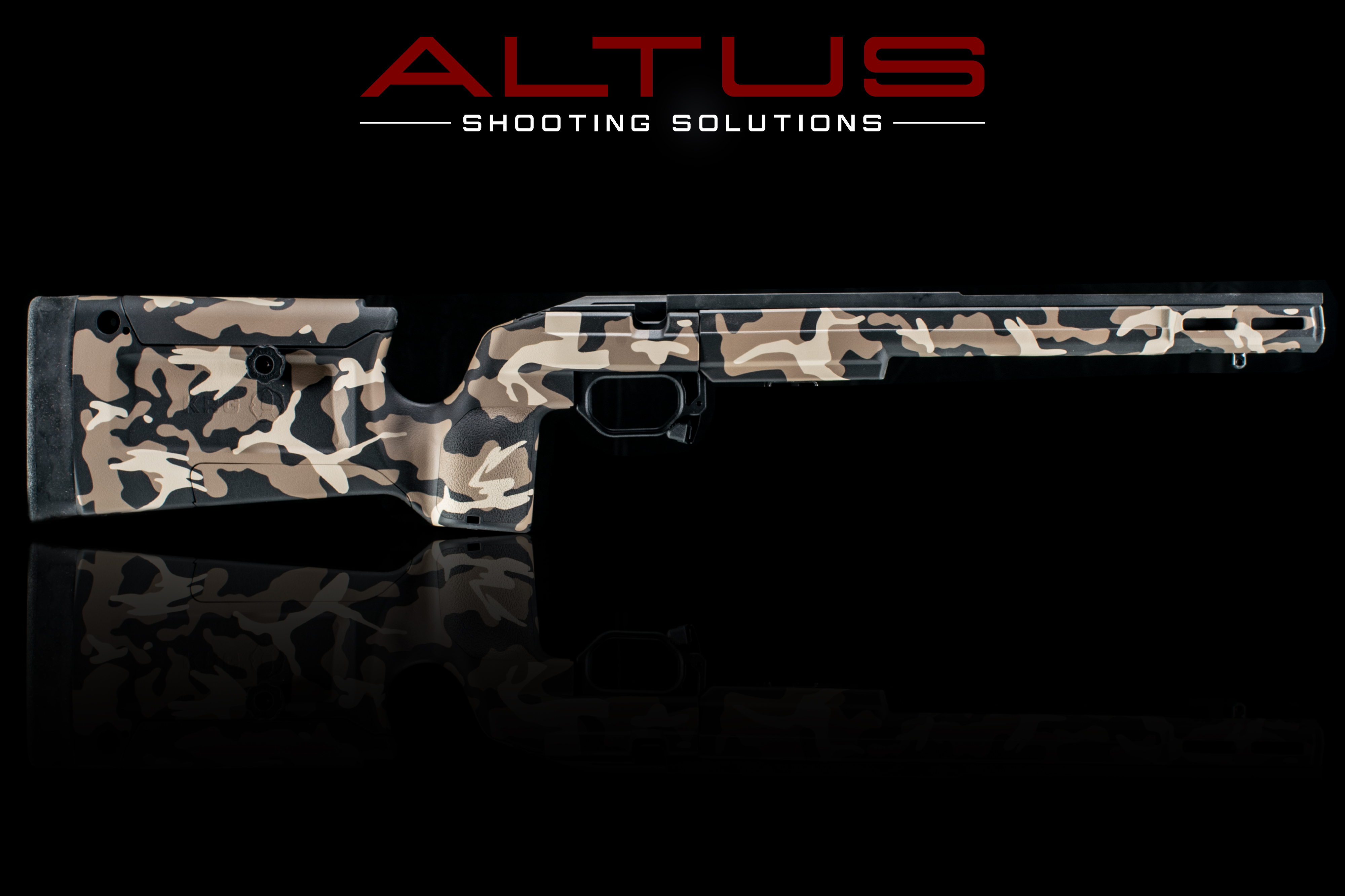

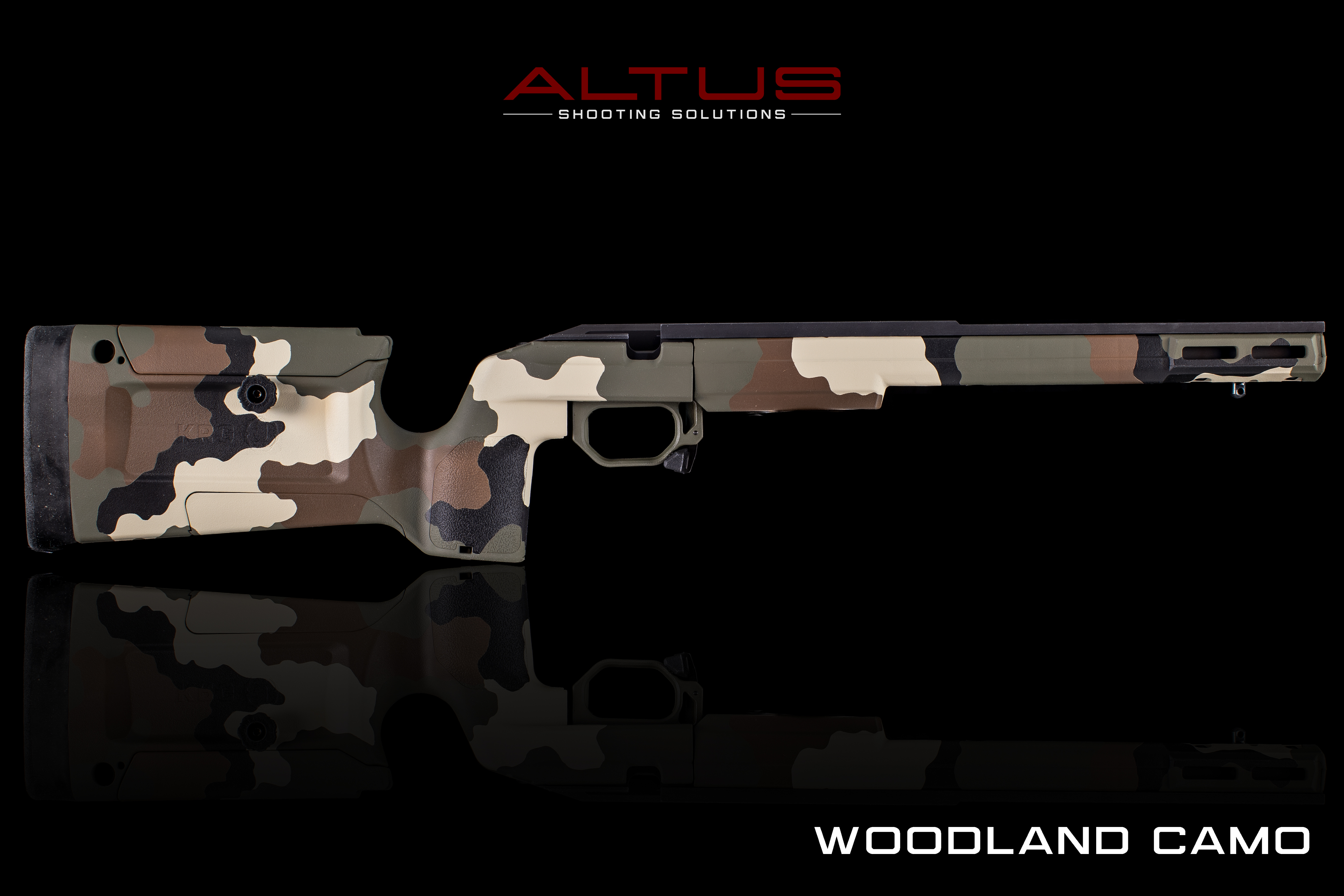

Custom Camouflage KRG Bravo Chassis

PLEASE ALLOW 2-3 WEEKS FOR CAMO CHASSIS TO SHIP.

Kinetic Research Group's (KRG) Bravo chassis provides the shooter with all the essential chassis features and benefits combined with conventional target/varmint ergonomics all at an economic price. One of KRG's most comfortable and ergonomic chassis, the Bravo also features a precision machined bedding block and full length aluminum backbone that will not allow the forend to flex, while still allowing the modularity that many shooters require in their chassis setup.

Bravo ChassisForend:

• Polymer for light weight and to eliminate heat transfer to/from the shooter's hand.
• Mounting holes at various positions will take L2 Picatinny rails, Tripod Mount, Barrier stop, etc .
• Mlok slots in sides and bottom of forend for universal accessories mounting
• Access hole for action mounting screw, so you can remove the action without removing forend.

“Backbone”/Chassis:

• Full length aluminum backbone from the action to the tip of the forend
• Radius bedding system which is CNC'd into aluminum for consistent contact between action and chassis.
• ***Rem 700SA standard made to accommodate standard Remington factory lug.
• Accepts the Whiskey-3 gen 3+ Spigot Mount.
• Designed for 5 or 10 round AICS magazines (with or without front spacer plate in T3, with spacer plate only in Rem 700 unless you have a modified action).
• Will accept any barrel contour up to 1.15” straight cylinder.(Will take standard 1.25" barrel shank and have clearance for that diameter out to about 4" past action face)

Trigger Guard/Mag catch:

• Molded or machined light weight trigger guard
• Rem 700 version will accept the new x-mark triggers and nearly all aftermarket triggers but some aftermarket triggers may require modifications to the trigger or chassis. (Tubb 2 stage trigger will not work)
• Optional mag catch extender button available in our "Accessories" section

Cheekpiece:

• Infinitely adjustable within range (~1” travel).
• Can be quickly removed and re-installed, uses a clamp and thumbscrew design.
• Made of polymer to limit heat transfer to or away from your face.

Length of Pull (LOP):

• Adjustable with spacers in 3/8" increments with nearly 2 1/4” of adjustment range.
• LOP range varies slightly between versions but is roughly 12.8” to 15” (technically even longer is possible with even more spacers).
• Bravo's include our 1-3 LOP kit which includes 3 spacers and the hardware to mount either 1, 2, or 3 allowing a max LOP of about 14"

Buttstock:

• Very strong reinforced polymer material.
• Mounting points for external QD cup.
• Built in thumbshelf for same-side-thumb-grip shooters.
• Can be configured with a continuous angled lower surface or a "butthook" configuration
• Modularity with X-ray and Whiskey-3 back ends, either of those will fit on Bravo and vice versa

Recoil Pad:

• Premium KRG designed pad that is light, durable, and comfortable to shoot.
• Remington 700 pattern so user can install aftermarket pre-fit pads if preferred.

Mounting features for slings, monopods, etc:

• Forend has M-LOK slots on each side and bottom along with other holes for mounting KRG accessories
• Buttstock has one position on each side for external QD cup (1 ea included).
• Buttstock includes angled cover with the "Butthook" cover sold separately
• Harris bipod stud included on forend.
• Spigot Mount can be added to front of chassis.
• Ambi QD sling plate can be mounted and provides 3 positions for QD sling or HK hook sling attachments.

Optional Accessories:

• Large selection of accessories from sling mounts to tripod mounts.
• ***All stocks come with 1 ea MOE L2 rail (made by Magpul)

Materials/Finishes:

•  Aluminum parts are hard anodized (Type III).
• Nearly all fasteners are stainless steel, some with black oxide coating, some are without.
• Steel parts are salt bath nitrided or stainless steel.
• Forend and buttstock are injection molded reinforced polymer.

Weight:

• 2.9 lbs w/o magazine.
