Description

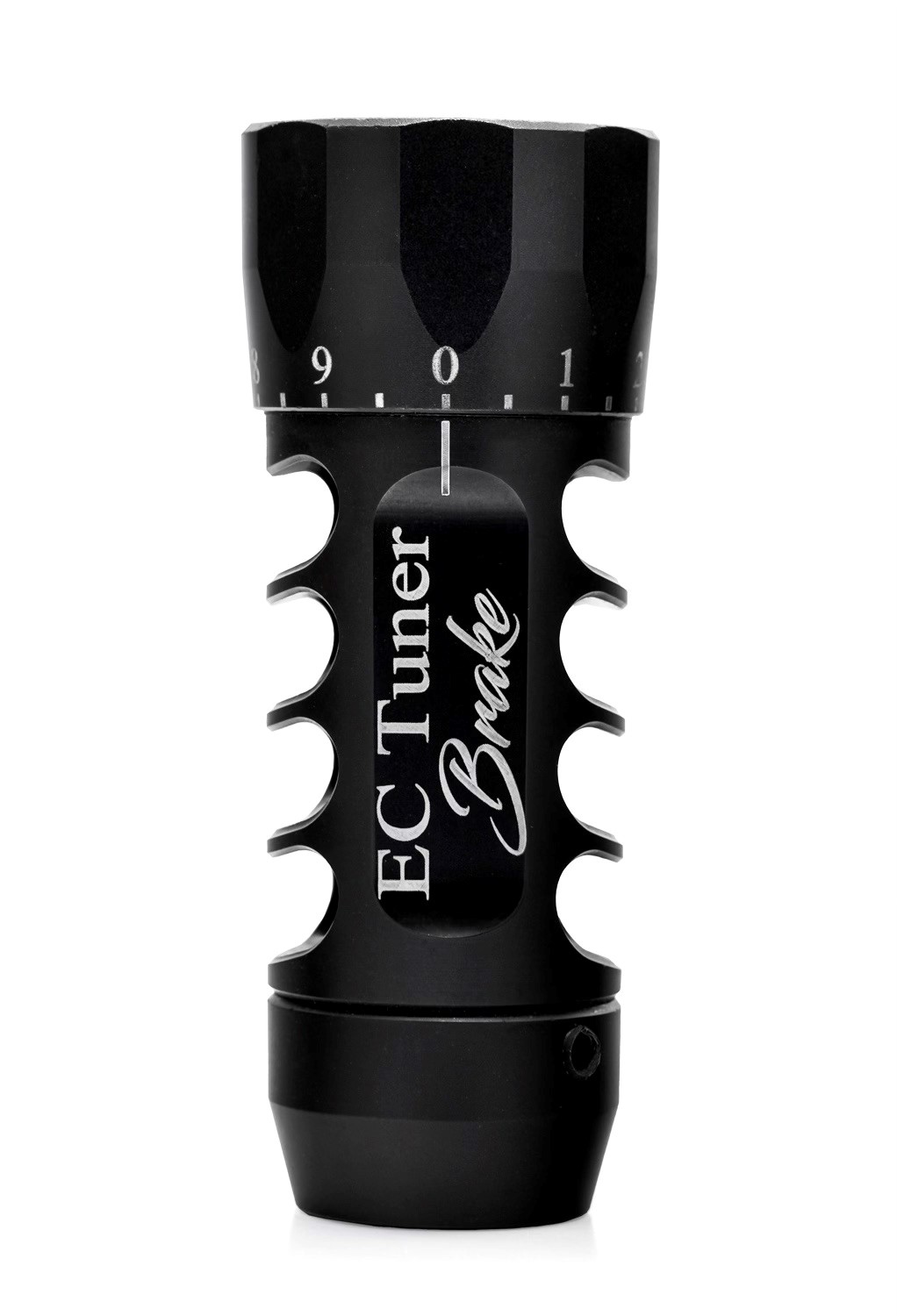

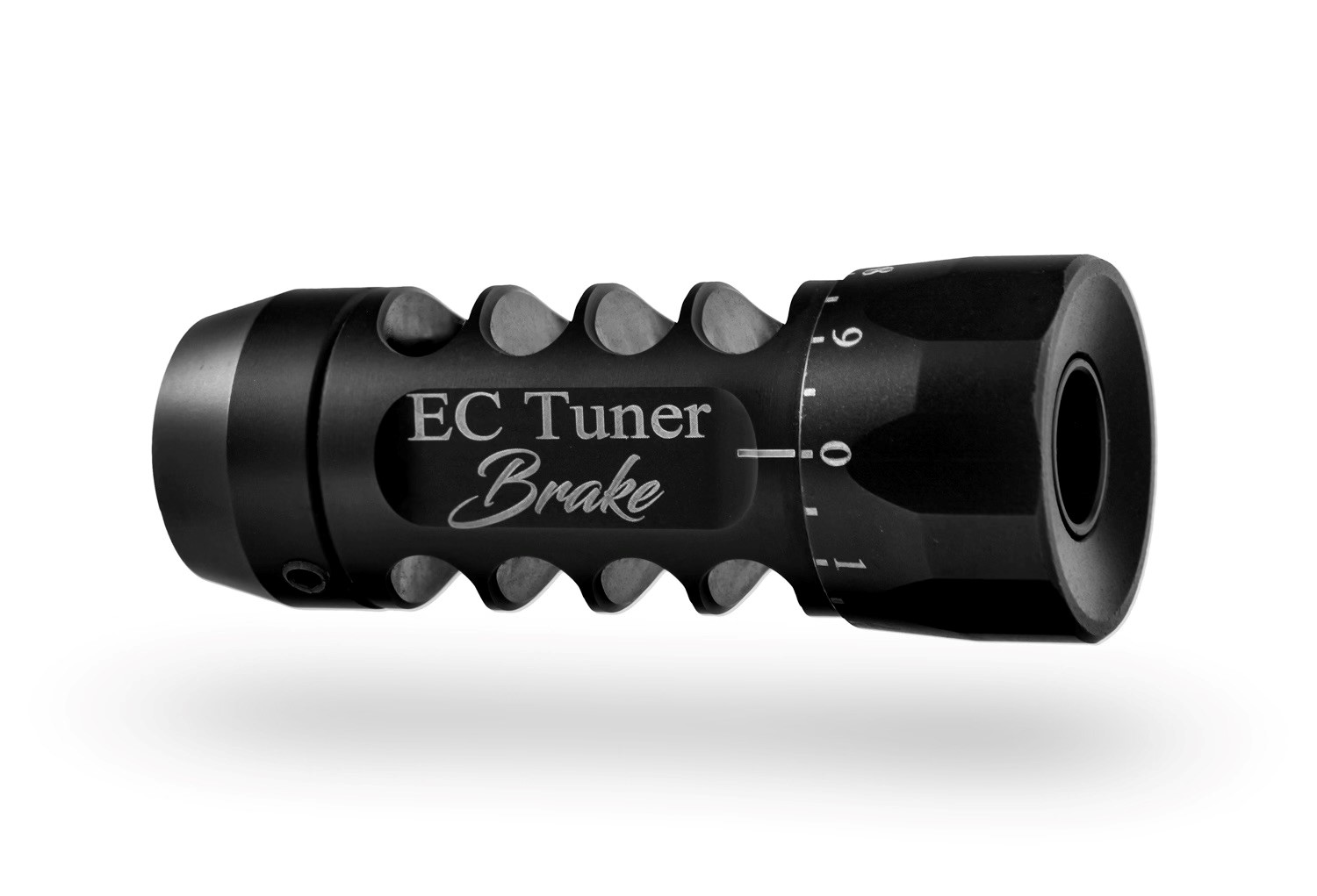

The NextGen EC Tuner Brake incorporates three elements that provide shooters easy installation, strong recoil reduction and optimal tuning.
The rear self-timing nut provides correct timing on any barrel. Midway, Our four port muzzle brake incorporates an expansion chamber for maximum recoil reduction. The first port is a “hybrid port”, 90 degrees in the back but 25 degrees in the front which creates a gas curtain to shield the shooter from the gasses from the other three forward ports. The next three ports are 25 degrees. The combination of port angles offers reduced muzzle blast fatigue combined with excellent recoil reduction. The front end is a tool-less barrel tuner. Our easily adjusted tuner allows barrel harmonics manipulation, matching your load and ensuring best possible accuracy.
This easily installed system will transform your rifle, achieving new handling and accuracy levels.
Available in 6mm , caliber 6.5, and caliber .30 — 5/8-24 threads — Precision machined, highly corrosion resistant 303 stainless steel
Finish: Uncoated Stainless steel
Diameter: 1.1″ (27.9 mm)
Length: 3.3″ (83.8 mm)
Rear of tapered nut diameter is ~.930″ (MTU contour)
